How to assemble Aluminum portable stage?

time:2016-10-19 editor:R-grafen

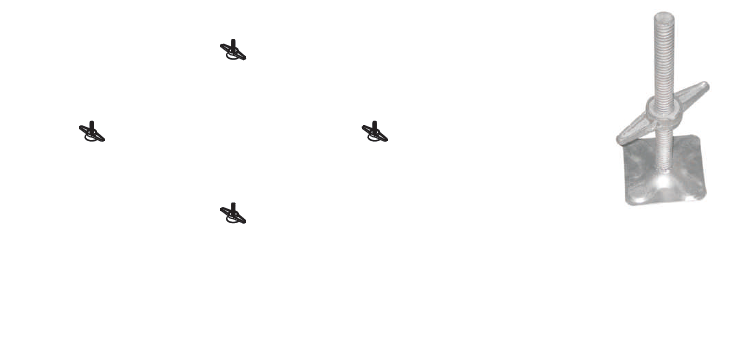

Step 1: Place the 4pcs adjustable bases in the suitable position

aluminum stage 1.png

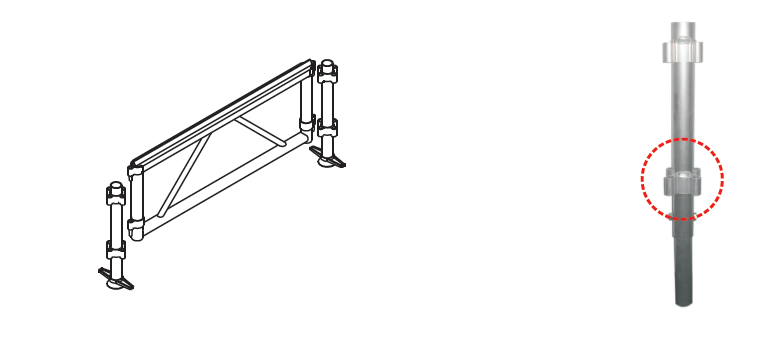

Step 2: Put the pillars into the bases, and install one brace between 2pcs pillars

aluminum stage 2.png

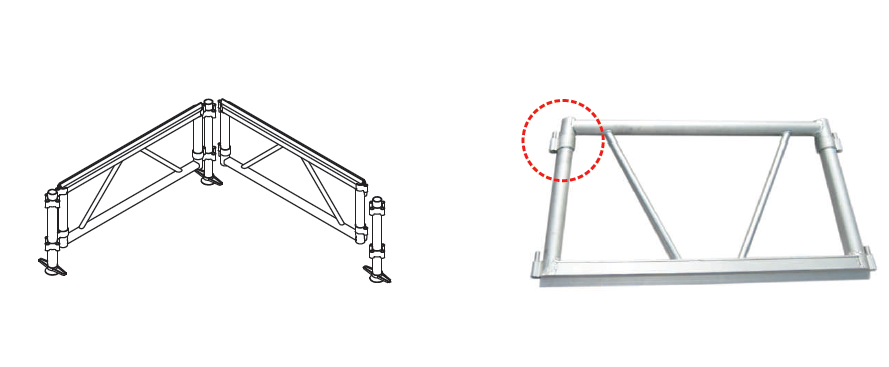

Step 3: Put another brace between 2pcs pillars in which a column 90 degrees

aluminum stage 3.png

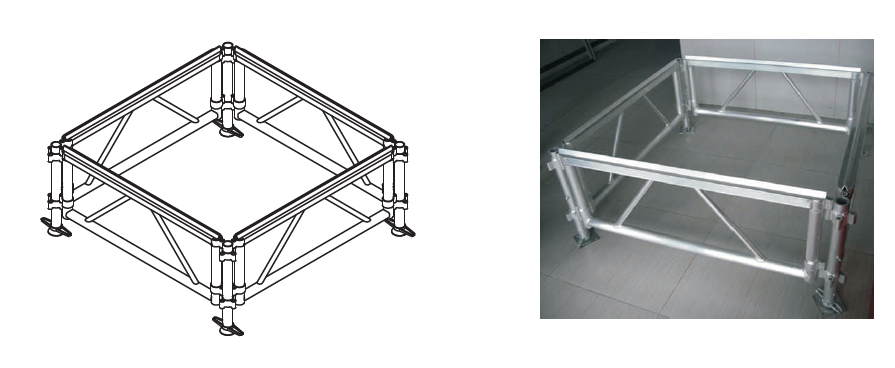

Step 4: Put the pillars into the bases, and install one brace between 2pcs pillars

aluminum stage 4.png

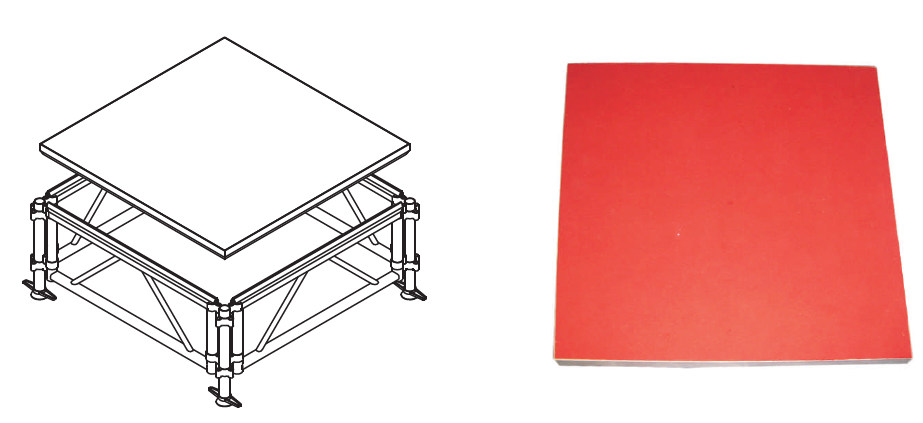

Step 5: Put a platform on the legs

aluminum stage 5.png

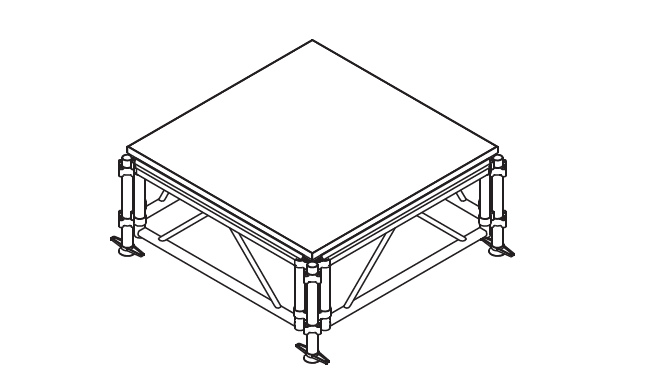

Step 6: Adjust the bases to keep in level, finish one set installation

aluminum stage 6.png

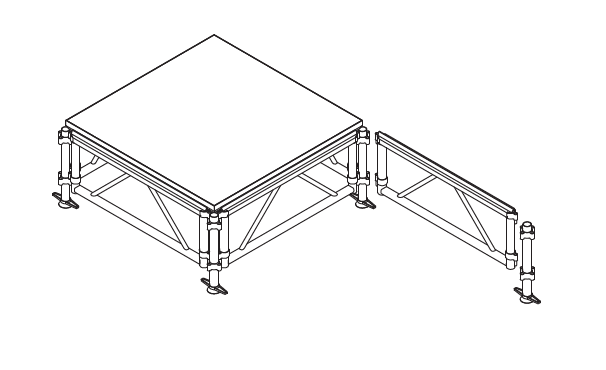

Step 7: Install another brace and one pillar

aluminum stage 7.png

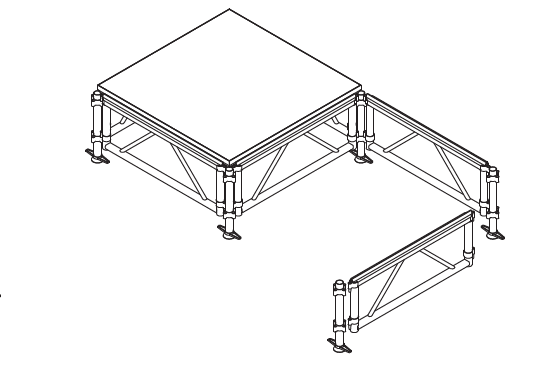

Step 8: Put another brace between 2pcs pillars in which a column 90 degrees

aluminum stage 8.png

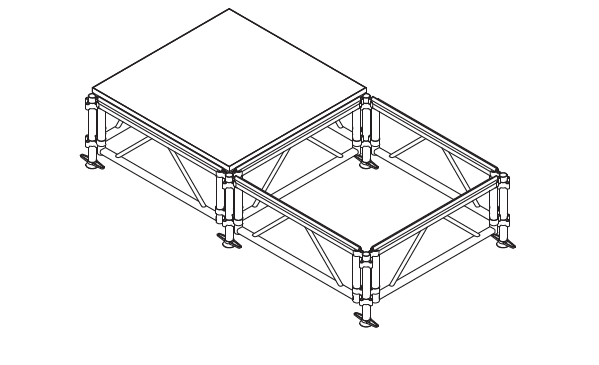

Step 9: Repeat step 8,finish all the legs installation

aluminum stage 9.png

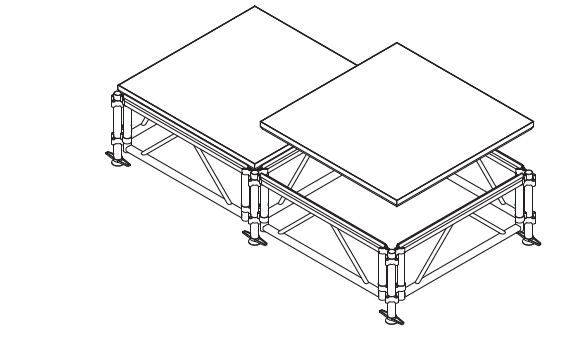

Step 10: Put a platform on the legs

aluminum stage 10.png

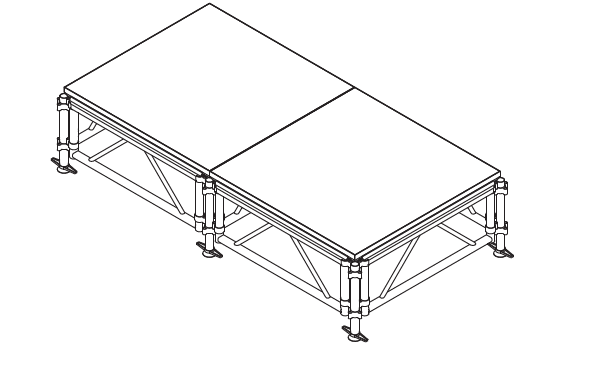

Step 11: Adjust the bases to keep in level. Repeat the step 7 to step 10,finish all the stages

aluminum stage 11.png
